Applicable Material: Sapphire, Quartz Crystal, Special Ceramics, Silicon Nitride and other super hard and brittle materials.
Max Processing Size: φ125*260mm
Cut Shape: Straight shape
Max Wirespeed: 900m/min
Product Introduction
CA400 Multi-wire Saw is mainly used for batch processing of Sapphire, Quartz Crystal, Special Ceramics, Silicon Nitride and other super hard and brittle materials into straight sheet. The machine adopts workpiece swing design to reduce cutting area and improve cutting speed, showing economy and practicality while ensuring processing efficiency, operational stability and process applicability.
Features
The rollers adopt double-cone-positioned structure for convenient assembling and disassembling.
8 wire guide wheel design to reduce wire break rate and wind diamond wire easily.
Swing slicing design for stronger cutting force.
Underside workbench for easier operation.
The cutting room is open on 3 sides for easier operation and maintenance.
Wire break memory system.

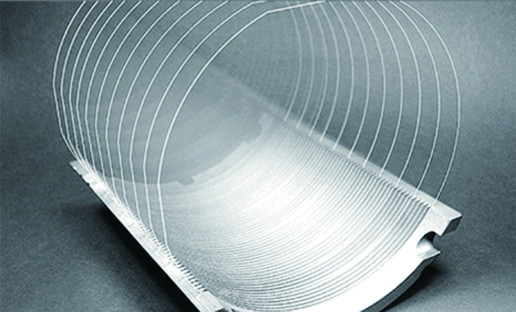

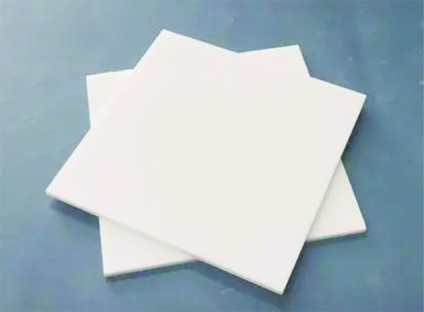

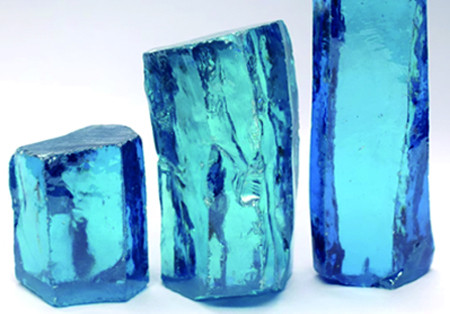

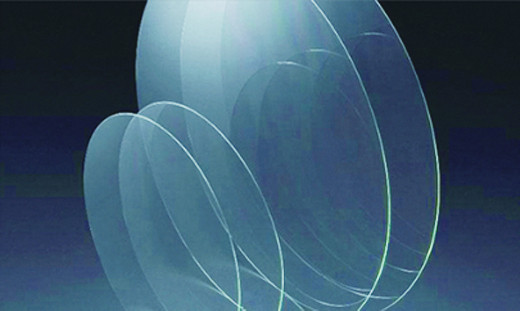

Cutting sample
Parameter
| Item | Detail | Parameter |
| Model | Model | CA400 |
| Ability | Maximum work size L*W*H | φ125mm*260mm |
| Roller | Out diameter *Workable width | φ145±10*266mm*3Rollers |
| Diamond wire | Wire diameter | φ0.12mm-φ0.25mm |
| Storage | 20km(φ0.25mm) | |
| Maximum running speed | 900m/min | |
| Workbench | Travel of workbench | 150mm |
| Workbench swing angle | ±7° | |
| Lift speed | 0.1-99.9mm/min | |
| Cutting method | Vertically upward | |
| Number of workbench | 1 | |
| Cutting fluid | Fluid | Water-based cutting fluid or cutting oil |
| Storage | 220L | |
| Flow rate | 200L/min | |
| Power & Air supply | Power supply | 380V±10% 50Hz |
| Power | 30kw | |
| Air supply | Adopting water-based cutting fluid, the air pressure is ≥ 0.35 MPa. | |
| Size & Weight | Size L*W*H | 3100mm*1490mm*2360mm |
| Weight | 4000Kg |
