Applicable Material：sapphire, quartz crystals, optical glass, special ceramics, artificial gemstone, electrode material, semiconductor materials, rare metals and alloys, and other hard and valuable materials.
Max Processing Size:220*310*135mm
Cut Shape: Straight shape
Max Wire Speed: 900m/min
Product Introduction
This series is mainly used for precision cutting of magnetic material, such as NdFeB magnet, samarium cobalt magnet, ferrite, alloys, silicon carbide, etc.
Features
Fewer guide wheels, the quantity reduced to 8 to reduce wire disconnection.
Underside workbench, the workbench is upward movement.
More smart, wire winding and release tracking system.
Wire break memory system.
Much stable, the whole-casted frame makes running stably.
Easy operation, the opening workspace makes operation easier.

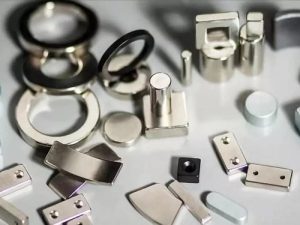

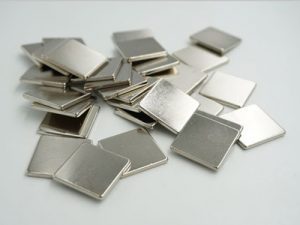

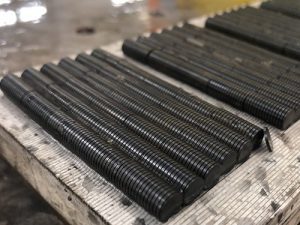

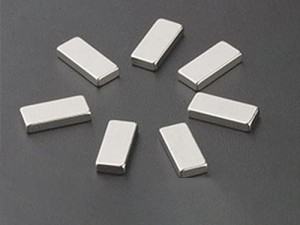

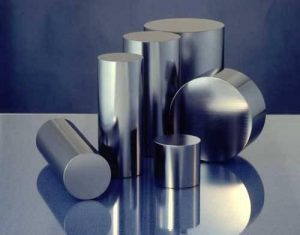

Cutting sample
Parameter
| Item | Detail | Parameter | ||
| 1 | Model | Model | CF400 | |
| 2 | Ability | Maximum work size L*W*H | 220mm*310mm*135mm | |
| 3 | Wire Guide Roller | Workable diameter *Workable width | φ145mm±10*320mm | |
| 4 | Spindle Space | 395mm | ||
| 5 | Component | Resin(PE or PU) | ||
| 6 | Diamond Wire | Wire Diameter | φ0.1mm-φ0.20mm | |
| 7 | Storage | 20km | ||
| 8 | Running speed | Max900m/min | ||
| 9 | Workbench | Travel of table | Max150mm | |
| 10 | Lift speed | 0.1-99.9mm/min | ||
| 11 | Fast feed speed | 150mm/min | ||
| 12 | Number of workbench | 1 | ||
| 13 | Cutting fluid | Fluid | Cutting oil | |
| 14 | Storage | 800L | ||
| 15 | Flow rate | 250L/min | ||
| 16 | Motor Power | Spindle | 7.5kw(servo motor) | |
| 17 | Sending wire | 4.4kw*2(servo motor) | ||
| 18 | Workbench lifting | 400w(servo motor) | ||
| 19 | Wire tension | 2kw*2(servo motor) | ||
| 20 | Water pump | 2.2kw | ||
| 21 | Wire winding & release | 200w*2 | ||
| 22 | Power&Air supply | Power | Three-phase 380V 50Hz | |
| 23 | Full-load power | 30kva | ||
| 24 | Air supply | 0.35 Mpa-600L/min | ||
| 25 | Size & Weight | Size L*W*H | 3000mm*1490mm*2360mm | |
| 26 | Weight | 4000Kg | ||
