Applicable Material：sapphire, optical glass, artificial gemstone, special ceramics, quartz crystal, electrode material, mono/polycrystalline silicon, aluminum oxide, aluminum nitride, magnetic materials, etc
Max Processing Size:160mm×680mm×160mm*2
Cut Shape: Straight shape
Max Wire Speed: 1800m/min
Product Introduction
This series is mainly used for high-precision and high-speed cutting of super hard and brittle materials, such as sapphire, optical glass, artificial gemstone, special ceramics, quartz crystal, electrode material, mono/polycrystalline silicon, aluminum oxide, aluminum nitride, magnetic materials, etc.
Features
➤Fewer guide wheels, the quantity reduced to 7 to reduce wire disconnection.
➤2 workbenches make high production&efficiency.
➤High-speed, the fastest wire speed can be achieved at 1500m/min.
➤Underside workbench, the workbench is upward movement.
➤More smart, wire winding and release tracking system.
➤Wire break memory&protection system.
➤Much stable, the whole-casted frame makes running stably.
➤Easy operation, the opening workspace makes operation easier.

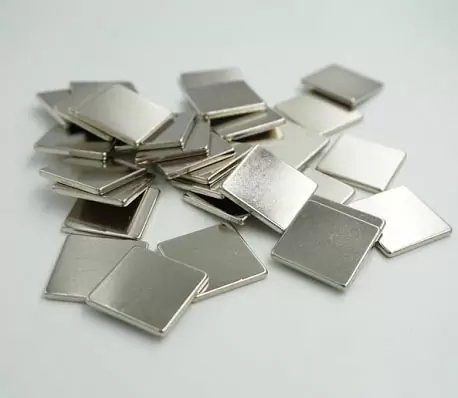

Cutting sample
Parameter
| NO. | Item | Detail | Parameter |
| 1 | Model | Model | CF680 |
| 2 | Ability | Maximum work size L*W*H | 160mm×680mm×160mm*2 |
| 3 | Roller | Workable diameter *Workable width | φ170mm±10*690mm |
| 4 | Component | Resin(PE or PU) | |
| 5 | Diamond Wire | Wire Diameter | φ0.10mm-φ0.25mm |
| 6 | Storage | 40km | |
| 7 | Running speed | Max1800m/min | |
| 8 | Workbench | Travel of table | Max245mm |
| 9 | Lift speed | 0.1-99.9mm/min | |
| 10 | Fast feed speed | 200mm/min | |
| 11 | Number of workbench | 2 | |
| 12 | Cutting fluid | Fluid | Water-based cutting fluid or cutting oil |
| 13 | Storage | 800L | |
| 14 | Flow rate | 200L/min | |
| 15 | Power&Air supply | Power | Three-phase 380V 50Hz |
| 16 | Rated power | 45Kw | |
| 17 | Size & Weight | Size L*W*H | 3330mm*2220mm*2550mm |
| 18 | Weight | 9000Kg | |
| 19 | Installation site | 10000kg Affordable |
