Applicable Material：sapphire, semiconductor materials, optical glass, quartz crystals, special ceramics, artificial gemstone, electrode material, rare metals and alloys, and other hard and valuable materials.
Max Processing Size: 70*600*120mm×2（Double Worktable） 130*600*120mm×2（Double Worktable）
Cut Shape: Tile/Straight shape
Max Wire Speed: 1200m/min

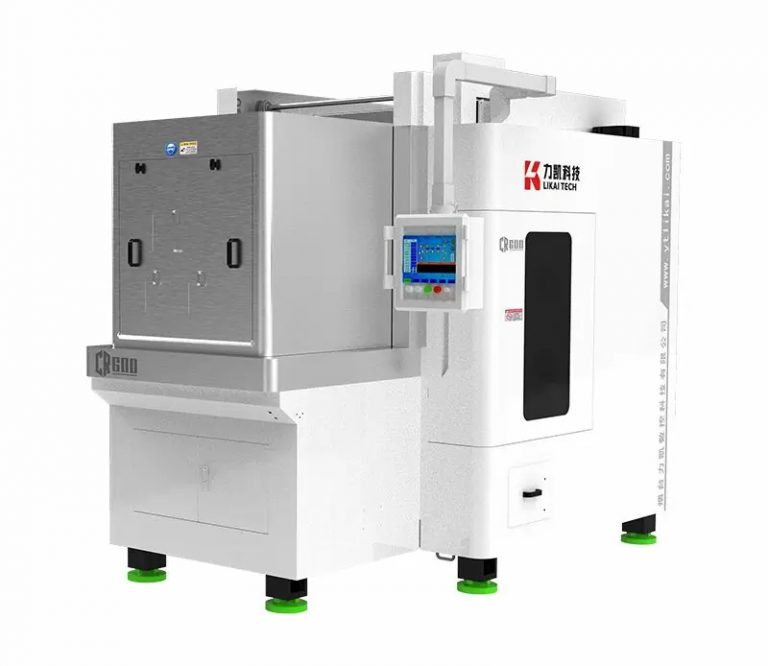

Product Introduction
This series is mainly used for cutting magnetic material with a circular arc shape(R shape). It allows customers to achieve high production and high economy for R shape slices.
Features
2 workbenches make high production&efficiency.
Fewer guide wheels, the quantity reduced to 8 to reduce wire disconnection.
R shape compensating system.
More smart, wire winding and release tracking system.
Wire break memory system.
Much stable, the whole-casted frame makes running stably.
Easy operation, the opening workspace makes operation easier.

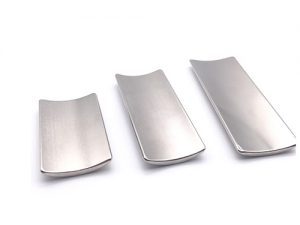

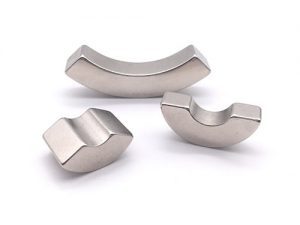

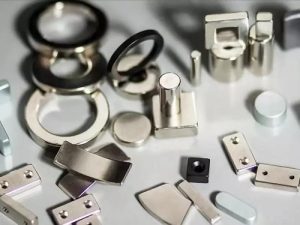

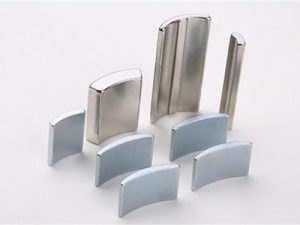

Cutting sample
Parameter
| Item | Detail | Parameter | |
| Model | Model | CR600 | CR600S |
| Ability | Maximum work size L*W*H | 70mm*600mm*120mm×2 | 130mm*600mm*120mm×2 |
| Thickness | 2mm~15mm | ||
| R shape height | ≥3mm | ||
| Roller | Out diameter *Workable width | φ145mm±10*610mm*4 | |
| Spindle Space | 235mm | 295mm | |
| Component | Resin(PE or PU) | ||
| Diamond Wire | Wire diameter | φ0.12mm-φ0.20mm | |
| Storage | 40km(φ0.25mm) | ||
| Running speed | 1200m/min | ||
| Workbench | Travel of workbench lifting | 180mm | |
| Travel of workbench translation | 30mm | ||
| Lift speed | 0.1-99.9mm/min | ||
| Fast feed speed | 150mm/min | ||
| Number of workbench | 2 | ||
| Cutting fluid | Fluid | Water–based cutting fluid or cutting Oil | |
| Storage | 800L | 800L | |
| Flow rate | 200L/min | ||
| Power | Power | Three-phase 380V 50Hz | |
| Rated power | 37kw | ||
| Size & Weight | SizeL*W*H | 3300mm*2100mm*2800mm | |
| Weight | 6500Kg | ||
| Installation site | 7000kg Affordable | ||
