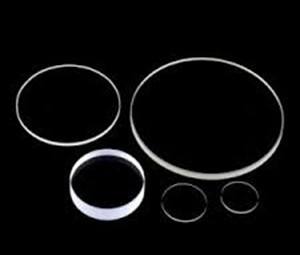

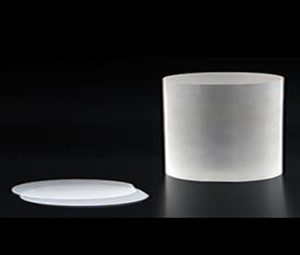

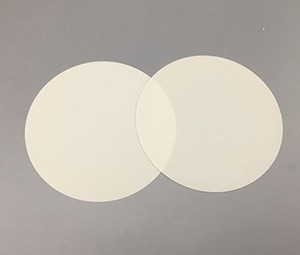

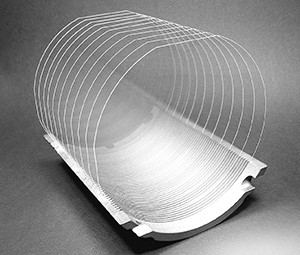

Applicable Material：Sapphire, Optical glass, Jade, and other super hard and brittle materials.
Max Processing Size: 1000mm×1000x1000mm
Cut Shape: Straight shape
Max Wire Speed: 1200m/min
Product Introduction
The machine uses a single diamond wire to cut super hard and brittle materials such as Sapphire, Quartz Crystal, Optical Glass, Jade, etc. in large size. With rocking cutting function, through the diamond wire swing thus reduce the product cutting area and achieve the cutting of super hard and brittle materials.
The machine can be equipped with online crystal direction automatic detection device, 360° automatic table rotation and automatic pitch angle adjustment function according to customer’s demand to realize accurate cutting of products.
Features
Much stable, the whole-casted frame makes running stably.
Optional crystal orientation meter can be used to achieve online automatic adjustment of crystal orientation.
Continue to cut after wire breakage.
Focusing on large size workpiece cutting, the maximum size of workpiece can be 1000mmx1000mmx1000mm.
HMI is easy to operate.
Parameter
| NO. | Item | Detail | Parameter |
| 1 | Model | Model | DCX-1000 |
| 2 | Ability | Maximum work size | 1000mm×1000x1000mm |
| 3 | Diamond wire | Wire swing angle | ±30° |
| 4 | Tensioning adjustment range | ≤80 | |
| 5 | Storage | 40km（φ0.25mm） | |
| 6 | Workbench | Wire feed speed | 0.1~10mm/min |
| 7 | Rotation angle | 360° | |
| 8 | Pitching angle | ±7° | |
| 9 | Cutting fluid | Fluid | Water-based cutting fluid or cutting oil |
| 10 | Storage | 355L | |
| 11 | Flow rate | 180L/min | |
| 12 | Power | Power supply | Three-phase 380V 50Hz |
| 13 | Total power consumption | ≤25kw | |
| 14 | Size & Weight | Size L*W*H | 3470mm*3500mm*3200mm |
| 15 | Weight | 12000Kg |
